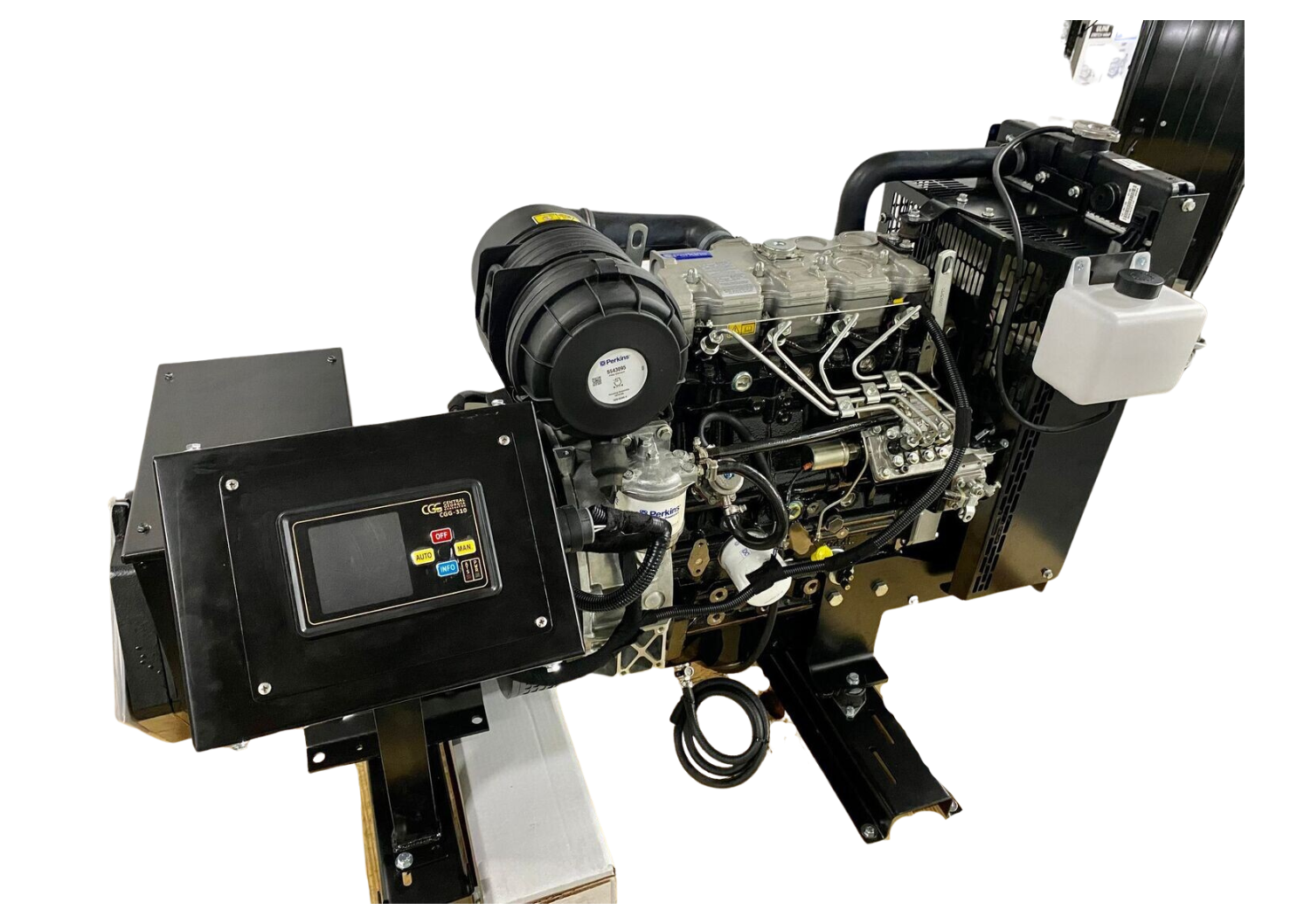

15KW-25KW New Perkins Diesel Generator Set *prices start at $8,700 - Tier 3 Standby

• 15KW (15,000 watts) continuous output
• 21KW (21,000 watts) continuous output
• 25KW (25,000 watts) continuous output
• AS440 AVR (automatic voltage regulator) installed to maintain constant voltage under load
• Perkins industrial diesel engine model 404D-22G, 1800rpm
• Price includes two wire auto-start controller
• Fuel tank, battery, and oil sold as accessories

• CGG184F 25KW (25,000 watts)
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AS440 AVR (Automatic Voltage Regulator)
• Winding 06 – 4 Wire 1 Phase (120/240V) / Winding 311 - 12 Wire 3 Phase (277/480V)
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor 1 Phase / .8 Power Factor 3 Phase
• Temp Rise/Ambient (125/40)
• Unit Weight: 405lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 40 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 56 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.

• High water temp shutdown
• Low oil pressure shutdown
• RPM gauge
• Frequency meter
• Hour meter
• Over and under rev protection
• Remote start with auto transfers switch (auto transfer switch not included!

Perkins Warranty
