3.55 PTO Gearbox

Name: 3.55 PTO Gearbox
SKU: 300-Gearbox/Parts
Price: 415.0 USD
Availability: InStock

Store / Accessory Parts / PTO Gearbox

$415.00

Type

Please choose

In stock

Product Details

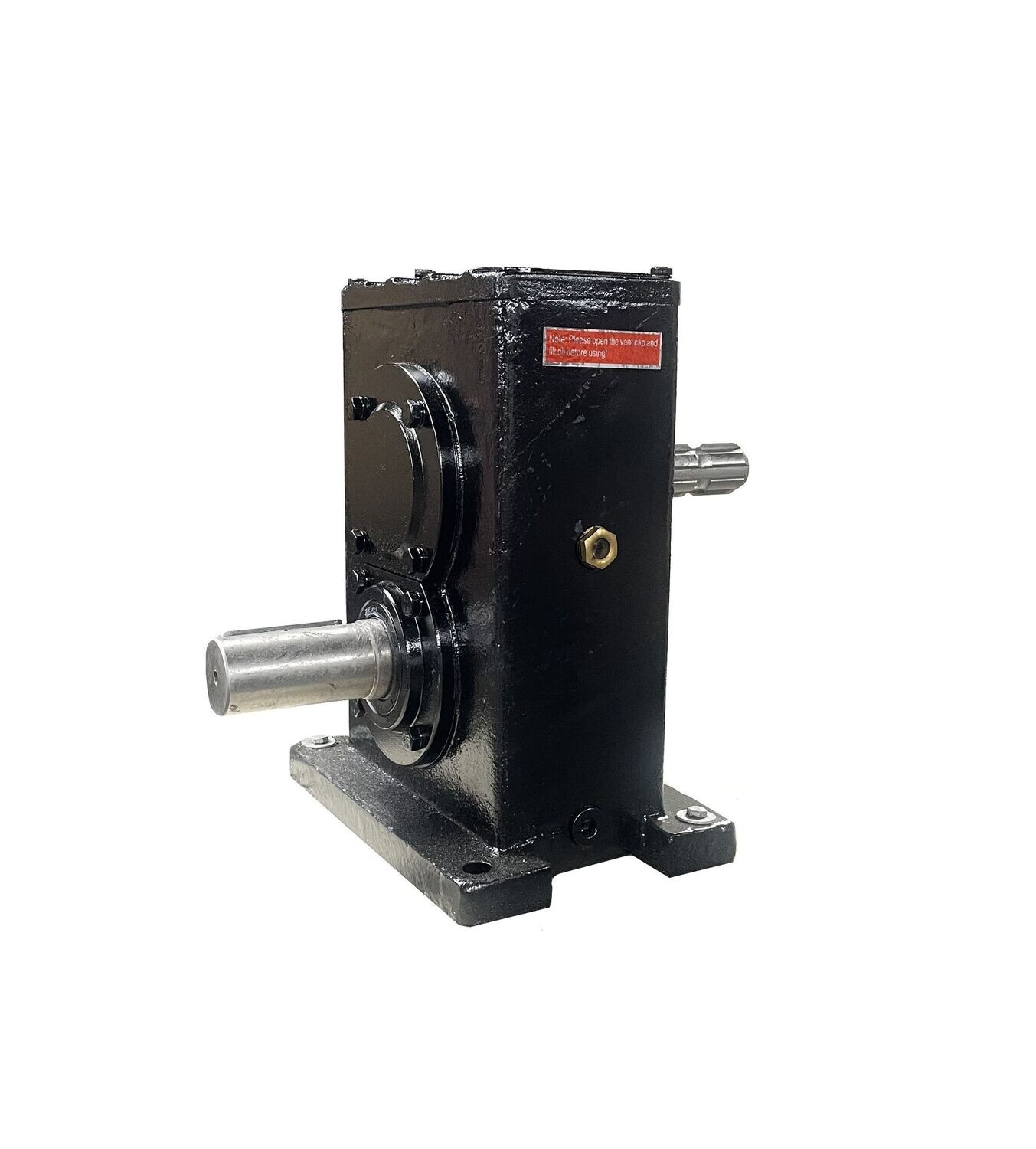

PTO Drive Gearbox

These gearboxes are designed for high HP (horsepower) tractors to lower the rpm (rotations per minute) of the tractor engine. We carry curved jaw couplers in metric sizes. If you need metric on one side and a standard inch size on the other for running water pumps or fans, or other equipment that requires standard size, We can help you get the proper LoveJoy style coupler.

3.55 Gearbox Description

Requires 1.6 liters of 80 to 140 wt. gear oil; this is like rear end gear oil for a car (do not overfill, it will come out of the vent on top).
Oil is not pre-installed in the gearbox.

540 to 1800 rpm rated for equipment requiring 60hp (horsepower) continuous, 70hp standby
Tractor can be rated for more than 60hp or less than 60hp For generators up to 40kw continuous 52kw standby
1 3/8 inch six spline input shaft
42mm smooth keyed output shaft
Output shaft turns in opposite direction from input shaft

Choose your desired gearbox from the drop down menu labeled “Type”

Spec Sheets

3.55 PTO Gearbox Dimensions

FAQ

3.55 PTO Gearbox FAQ

If you have any questions regarding this product, please give us a call (678) 603-5852
