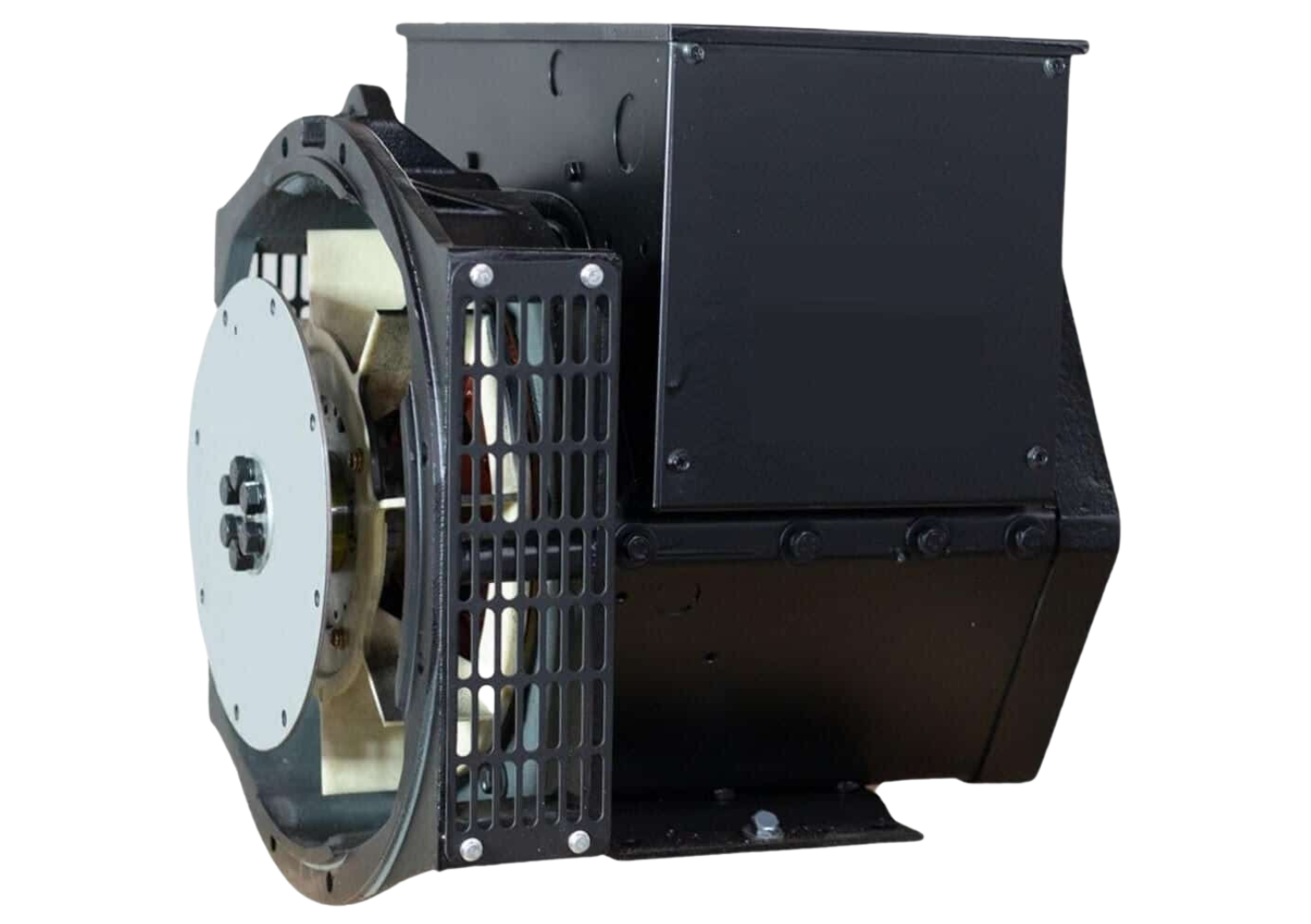

CGG 164B 11KW Single Bearing

• CGG164B 11KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AS440 AVR (Automatic Voltage Regulator)
• Winding 06 – 4 Wire 1 Phase (120/240V) / Winding 311 – 12 Wire 3 Phase (277/480V)
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor 1 Phase / .8 Power Factor 3 Phase
• Temp Rise/Ambient (125/40)
• Unit Weight: 235lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 16 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 22 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.

• 120/240 1 Phase
• 120/240 3 Phase
• 120/208 3 Phase
• 277/480 3 Phase

When purchasing a 3 phase (277/480V) generator, you can opt to have it rewired to one of the above options, otherwise, 3 phase generators come standard 277/480V. If you are needing your 3 phase generator rewired to one of the options above, please denote that in your order notes when placing your order. Please keep in mind that a 3 phase generator rewired to dedicated single phase 120/240V will lose 1/3 of its power.
