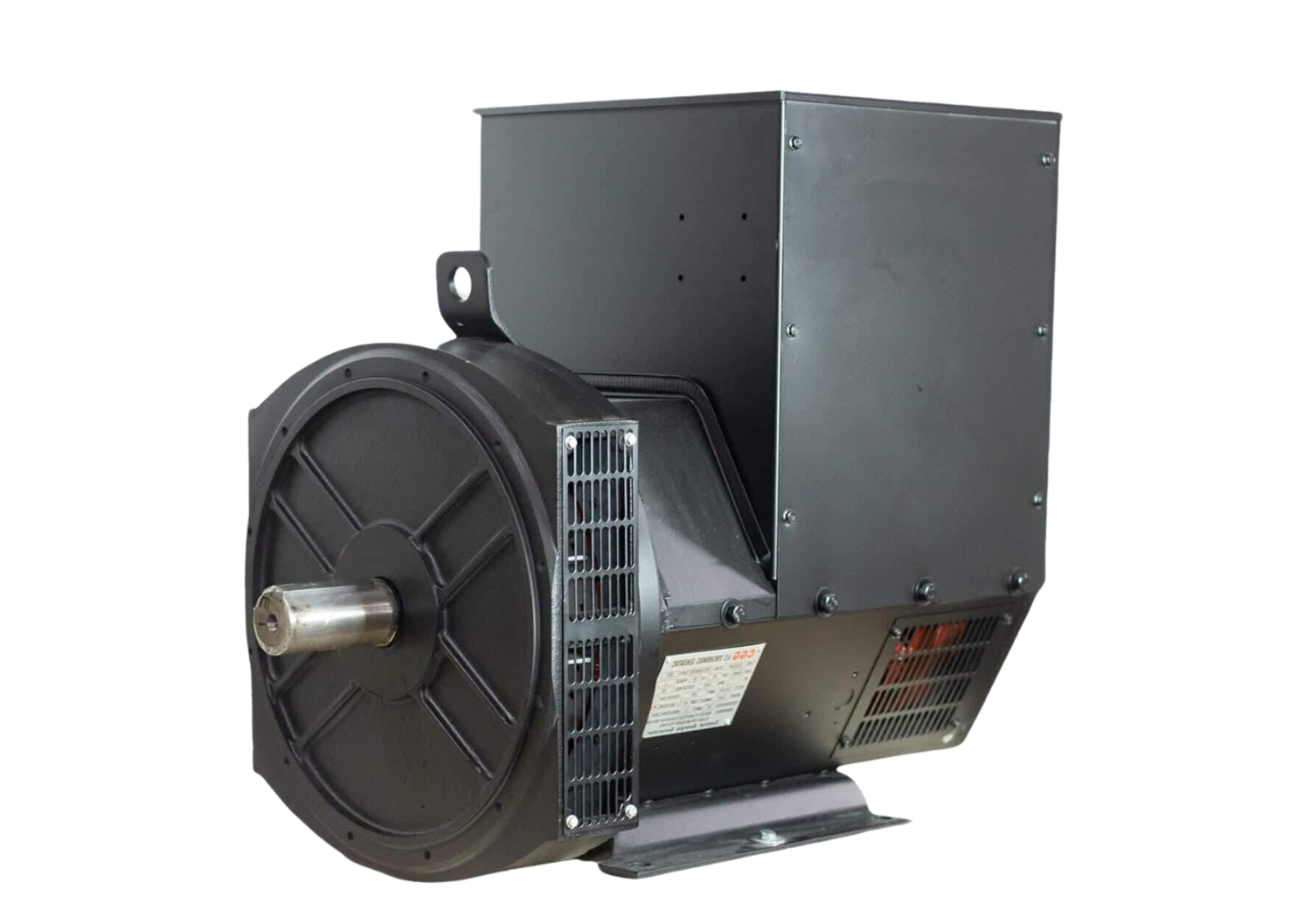

CGG 274F 165KW 3 Phase Double Bearing

• CGG274F 165KW
• Equipped with PMG (300% boost of rated power for 5 seconds)
• MX321 AVR (Automatic Voltage Regulator)
• Winding 311-12 Wire 3 Phase (277/480V)
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• .8 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 960lbs.
• Double Bearing (uses shaft)
• 236 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 330 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac

• 120/240 1 Phase
• 120/240 3 Phase
• 120/208 3 Phase
• 277/480 3 Phase

When purchasing a 3 phase (277/480V) generator, you can opt to have it rewired to one of the above options, otherwise, 3 phase generators come standard 277/480V. If you are needing your 3 phase generator rewired to one of the options above, please denote that in your order notes when placing your order. Please keep in mind that a 3 phase generator rewired to dedicated single phase 120/240V will lose 1/3 of its power.
